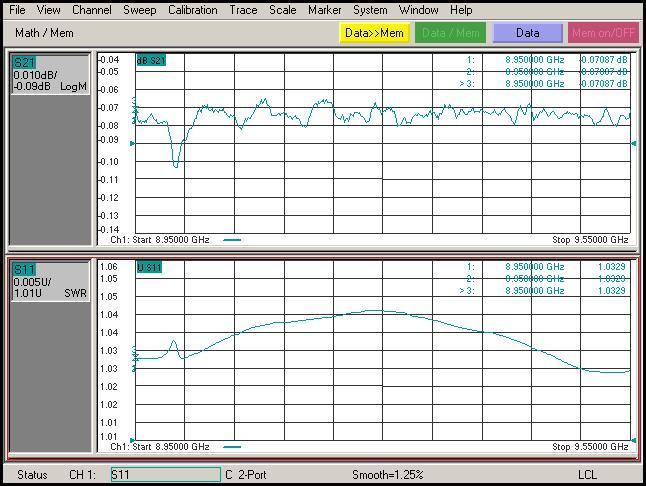

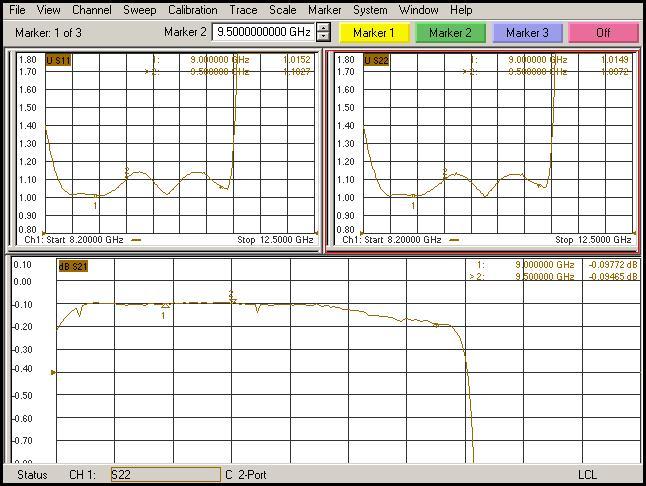

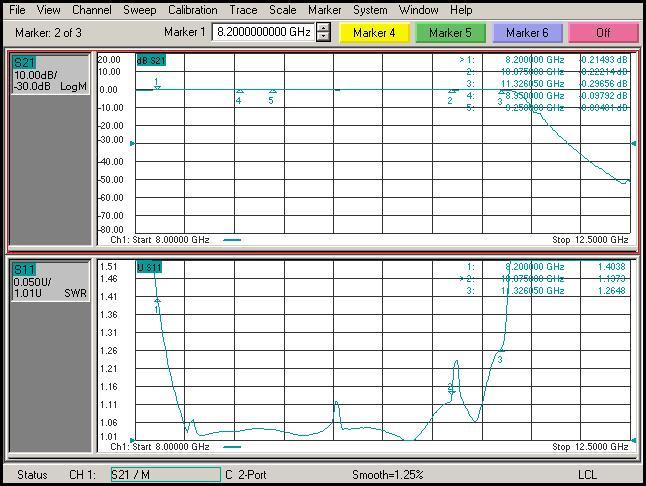

Passband frequency: 9 GHz ~ 10 GHz

Passband insertion loss: ≤0.1 dB

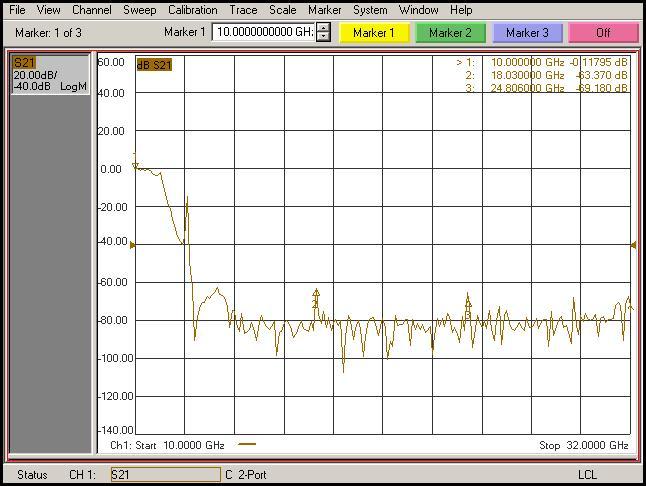

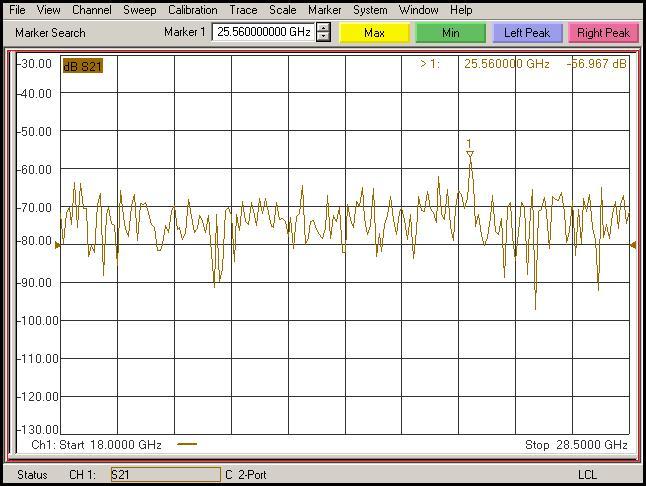

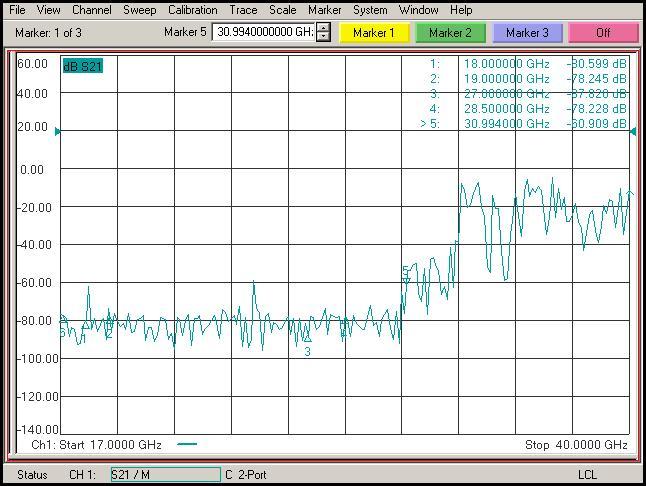

Harmonic rejection: ≥60 dB @ 18 GHz ~ 30 GHz

VSWR (Voltage Standing Wave Ratio): ≤1.05

Power handling (CW): ≥1000 W

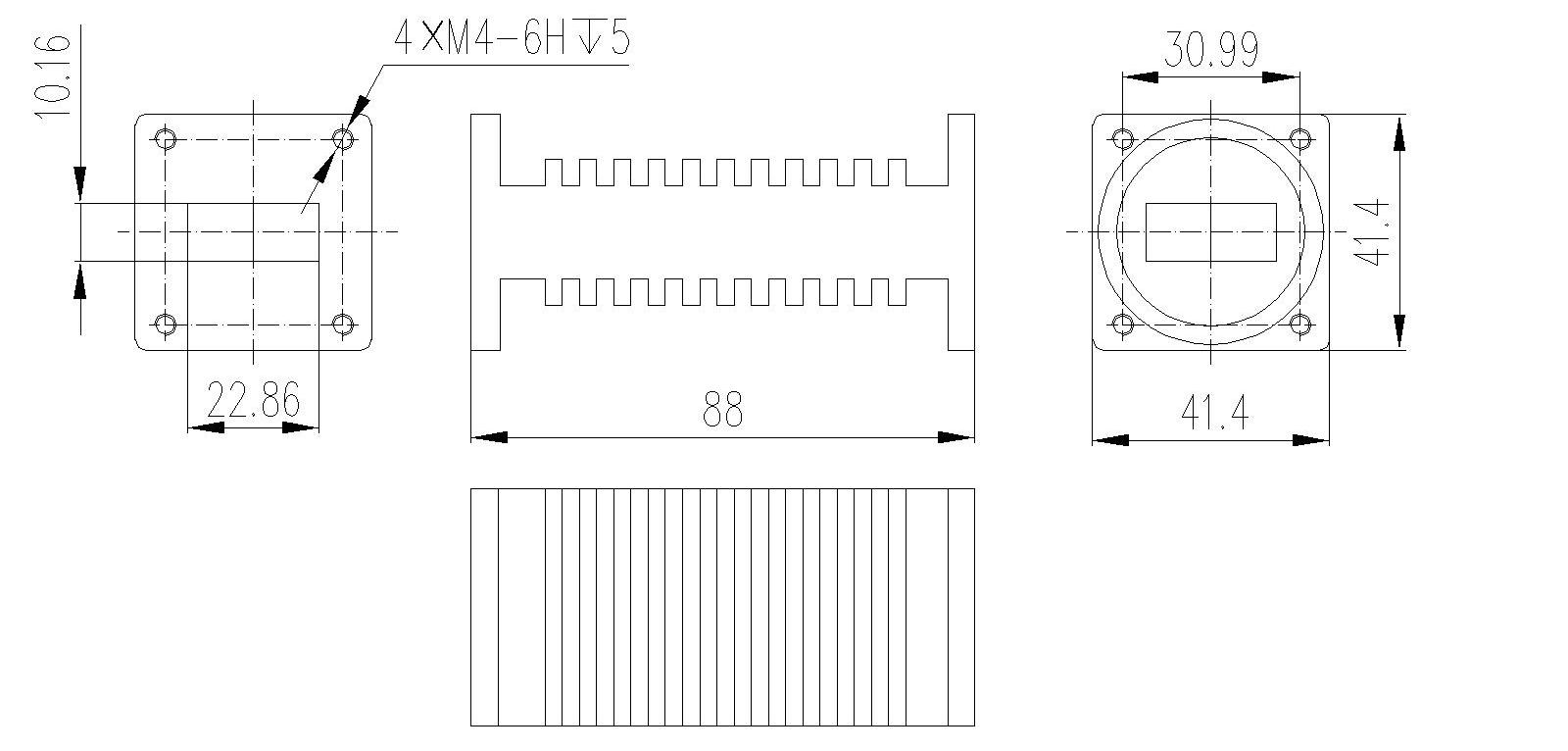

Flange interface: FBM/FBP100

Material and coating: Copper with silver plating, exterior surface painted
