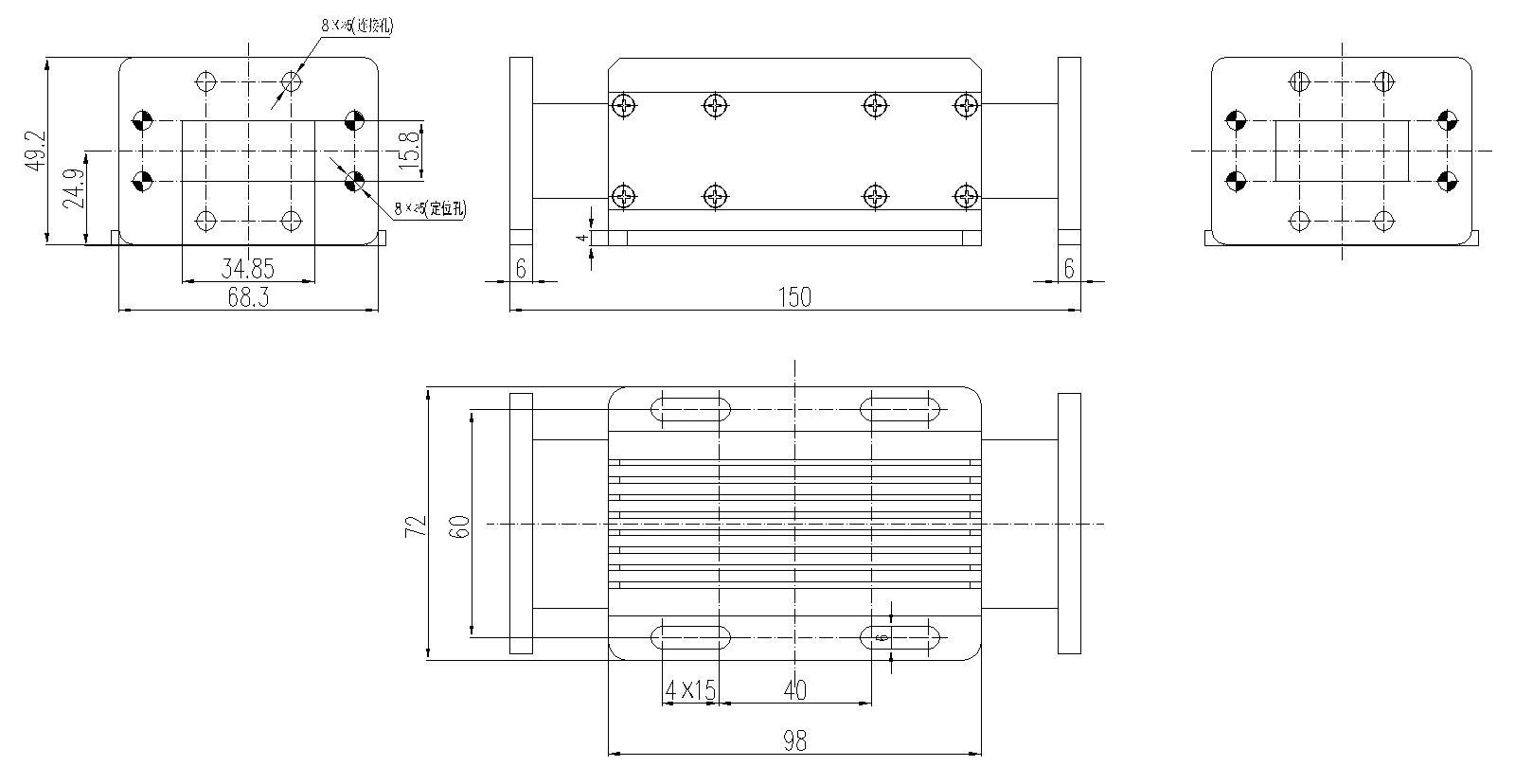

Waveguide Harmonic Filter

Passband frequency: 5.8 GHz ~ 7.1 GHz

Passband insertion loss: ≤0.2 dB

In-band ripple: ≤0.1 dB

Harmonic rejection: ≥60 dB @ 11.6 GHz ~ 17.2 GHz

VSWR: ≤1.2

Power handling (CW): ≥1200 W

Flange interface: FDP70

Material and coating: Copper with silver plating, exterior surface painted
