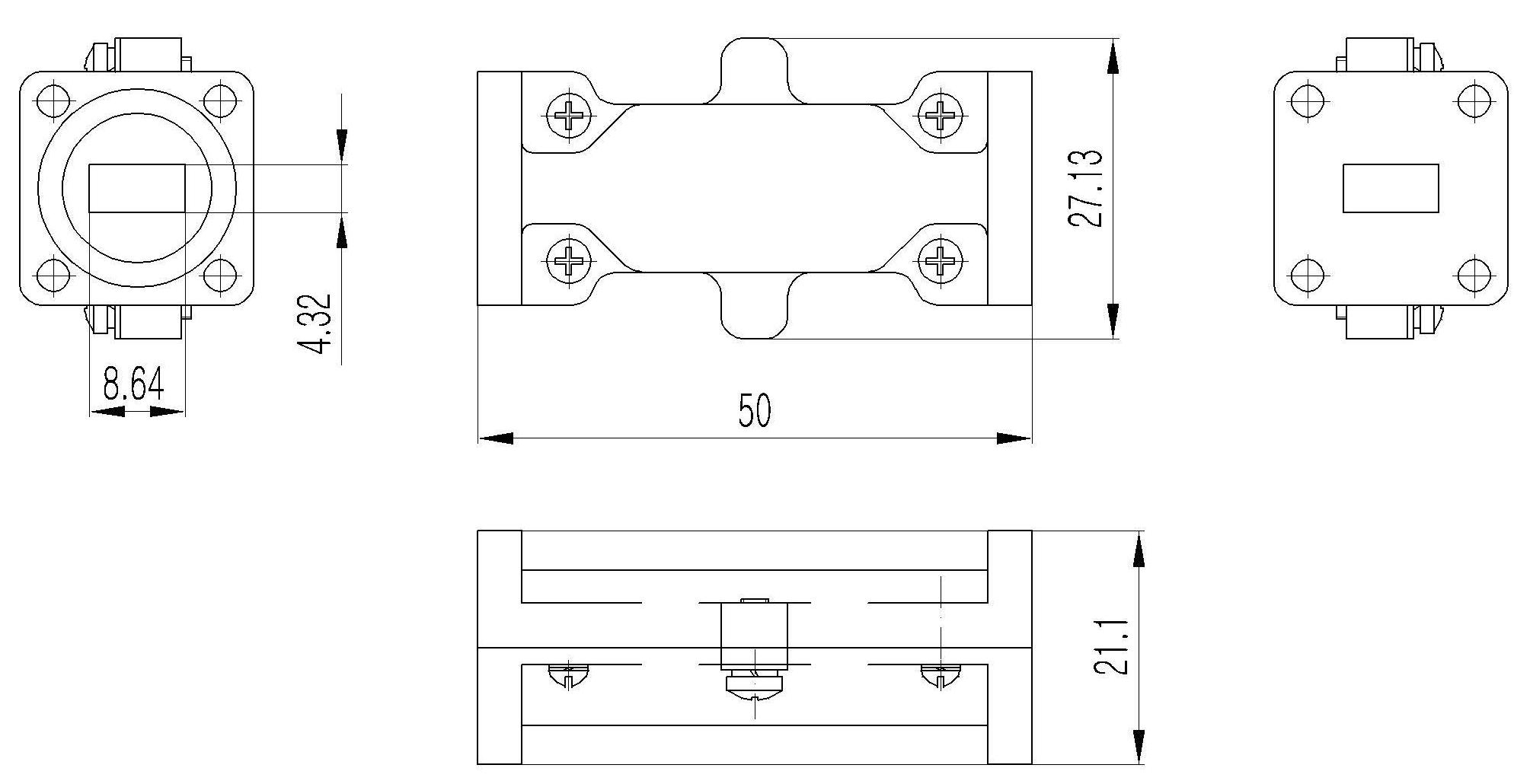

Waveguide Harmonic Filter

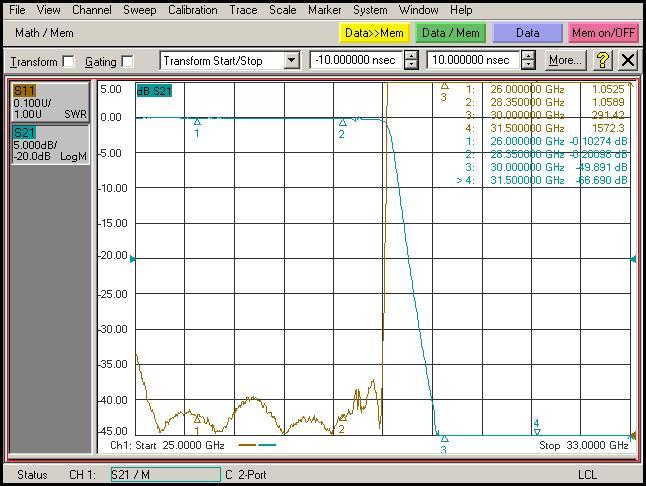

Passband frequency: 26 GHz ~ 28.35 GHz

Passband insertion loss: ≤0.25 dB

In-band ripple: ≤0.1 dB

Out-of-band rejection: ≥45 dB @ 30 GHz ~ 31 GHz

VSWR: ≤1.15

Flange interface: FDP/FBM260

Material and coating: Copper with silver plating, exterior surface painted
