Operating voltage: 9–24V
Operating current: <200mA @12V
Operating frequency: 79GHz
Data update time: 50±5ms

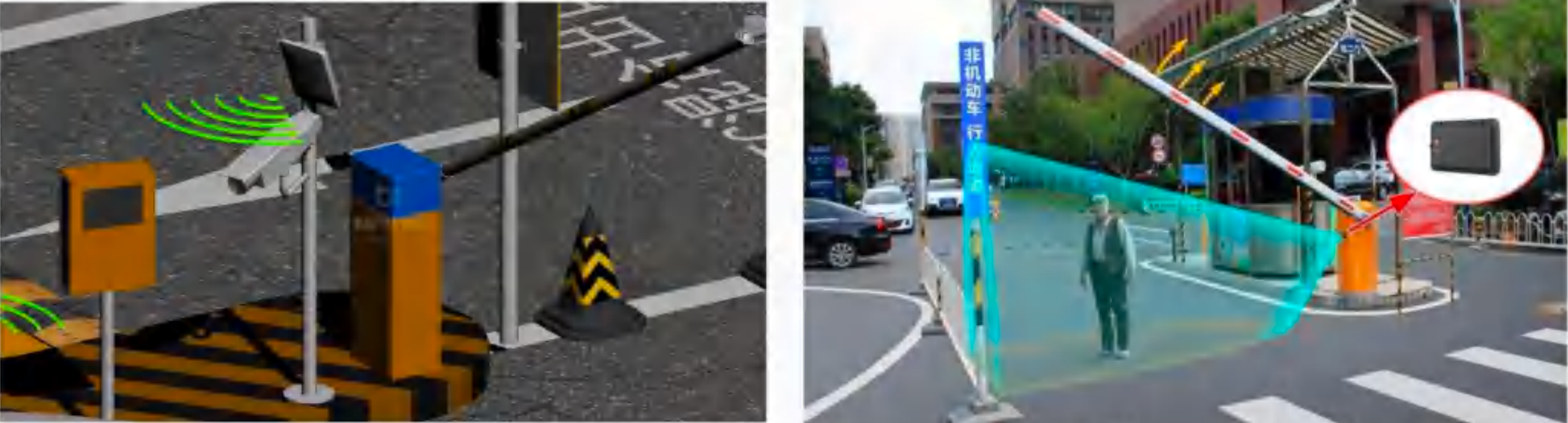

Passage width: 0.2–6m
Compatible rod types: straight rod, advertising rod, barrier rod (with grille)
Detection targets: vehicles, pedestrians
Horizontal angle range: 90°
Pitch angle range: 10°
Data interface: 485
Wireless connection: Bluetooth for debugging via mini‑program
Operating temperature range: -40°C ~ 85°C
PCBA dimensions: 64mm × 60mm × 10mm
Overall dimensions: F105mm × 83mm × 22mm (F likely denotes diameter)
