UBR120/PBR

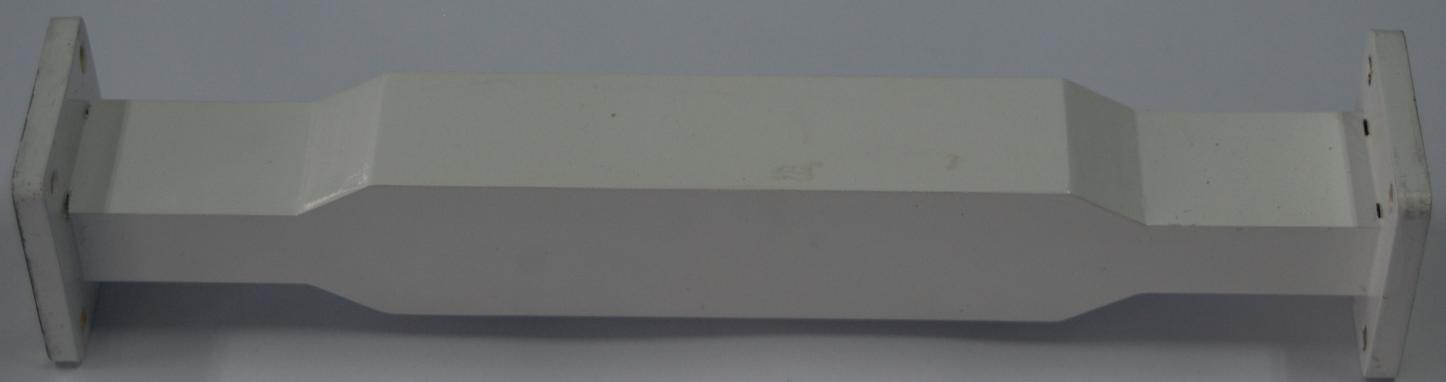

Waveguide Low‑Pass Filter
Interface: UBR120/PBR

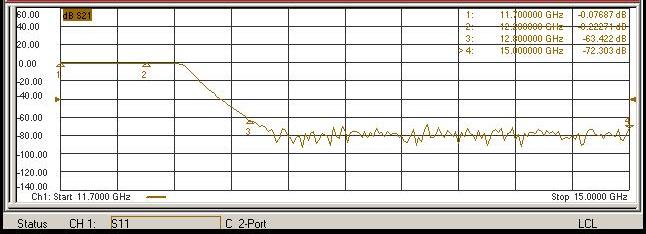

Electrical Performance
2.1 Passband: 11.70 GHz ~ 12.20 GHz
2.2 Insertion loss: ≤0.25 dB
2.3 Rejection: ≥60 dB @ 12.8 GHz ~ 15 GHz
2.4 Power handling: ≥100 W
