Waveguide Duplexer

1. Physical Characteristics

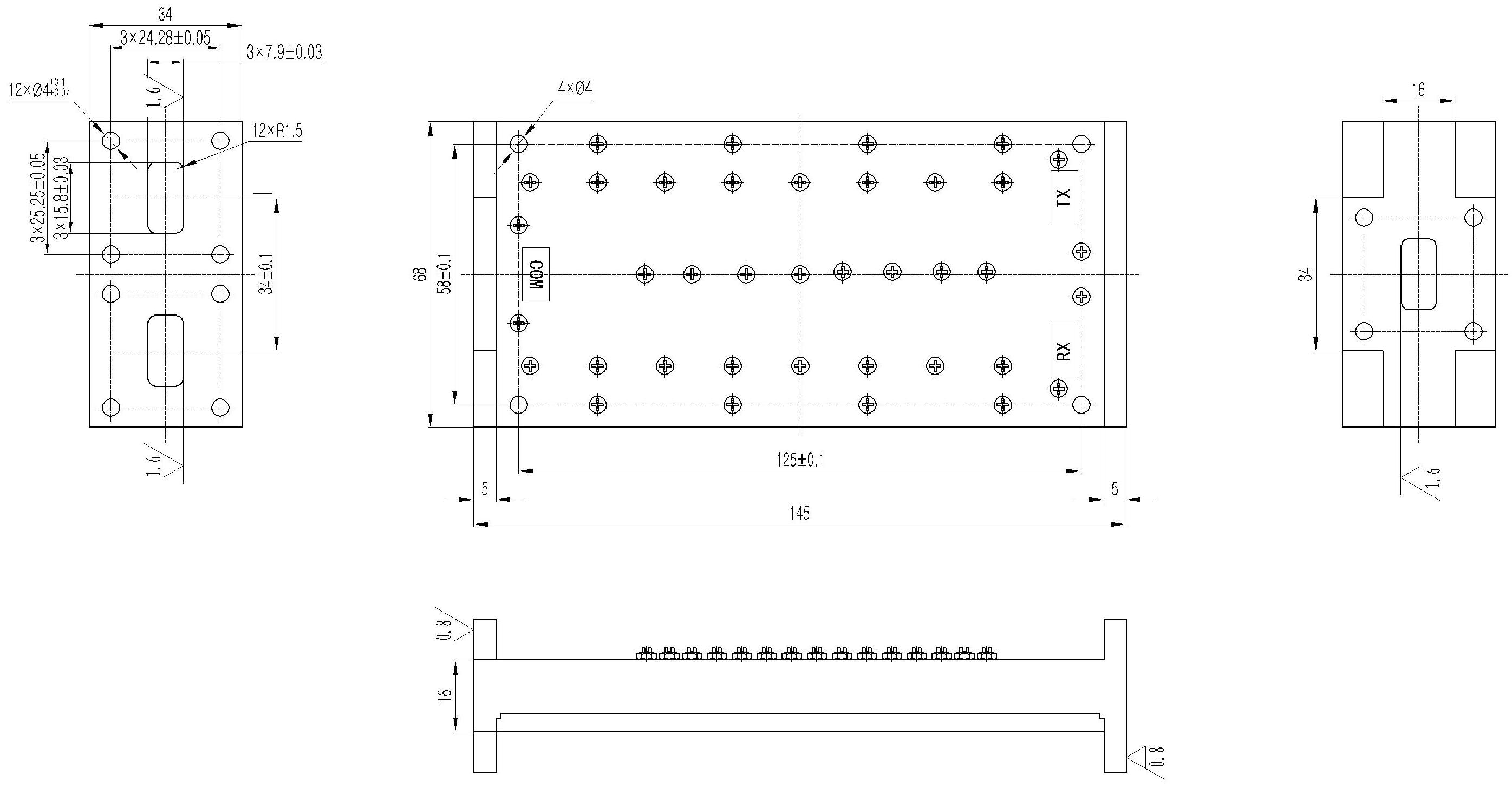

1.1 Outer dimensions: as shown on this page
1.2 Interface: UBR140

2. Electrical Performance

2.1 Operating frequency bands:

Receive channel (RX): 14.6 GHz ~ 14.8 GHz

Transmit channel (TX): 15.6 GHz ~ 16.3 GHz
2.2 Insertion loss: ≤1.2 dB
2.3 Isolation: ≥80 dB
2.4 VSWR: ≤1.3
2.5 Interface type: UBR140
2.6 Power handling: Average power 100 W
