Operating frequency: 76–77 GHz
Target update period: 50 ms
Longitudinal range: -30 m to 10 m (negative = rear direction)
Lateral distance range: 0.25 m to 6 m
Distance accuracy: ±0.1 m
Speed range: -40 m/s to +40 m/s (negative = moving away, positive = approaching)
Speed accuracy: 0.2 m/s
Horizontal FOV: ≥180°
Vertical FOV: <30° (±15°)
Horizontal angle accuracy: ±1°

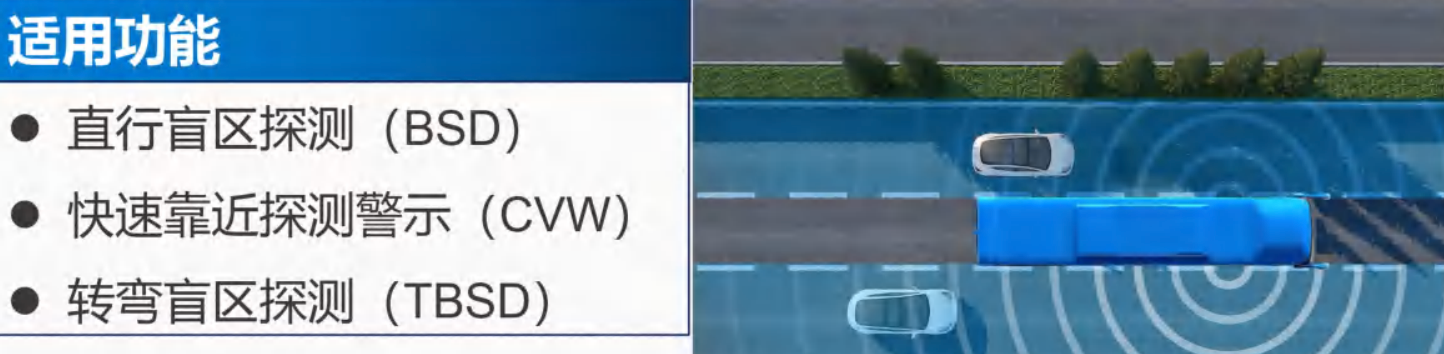

Detectable targets: Pedestrians, cyclists, motor vehicles
Operating voltage: 9 V – 32 V DC
Current: <160 mA @ 24 V
Data interface: CAN
Operating temperature: -40 °C to +85 °C
